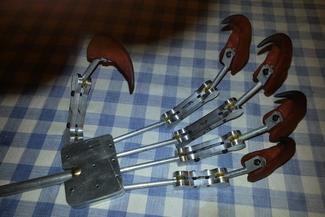

This is the hand of a life size prototype puppet design.

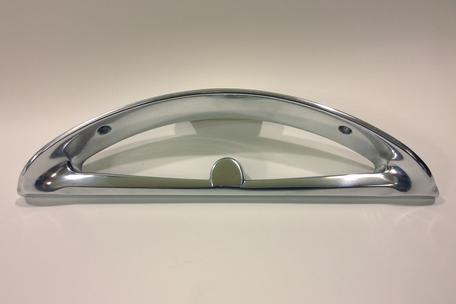

A finished Bezel to show off this portion of the design. casting done  myself.

Pattern and initial test castings for a rear package tray.

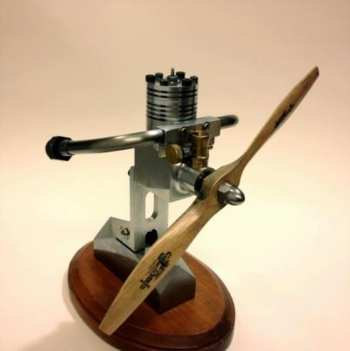

I really enjoyed this project at the local community College CNM, while learning machining. Ran wonderfully even with the unorthodox design changes.

Relieved the head,exhaust port orientation changes from side to front, titanium exhaust are old f14 tomcat hydro lines, all parts lapped into final dimension by hand.

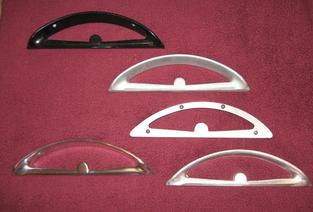

OEM Bezel fit i found to be the best after removing some of the flashing that had never been done by the factory.

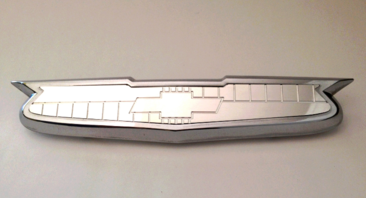

Granted a license agreement with GM, now selling through ECKLERS, and WOODYS HOT RODS.

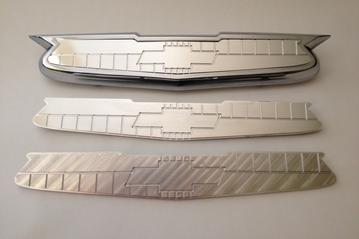

This photo is of the  initial test batch of CHEVY emblems.

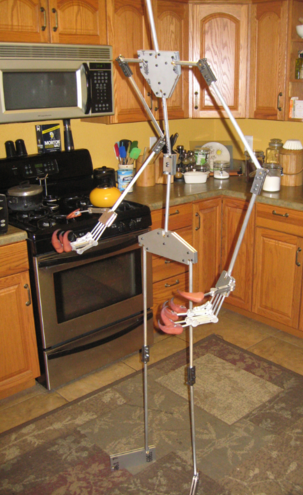

The armatures feet had not been completed at the time of this photo, ill put a updated one up soon.

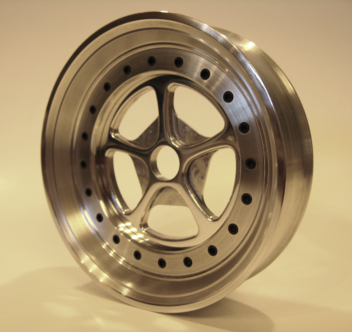

Wheel Design,

KEVIN S SWARTZ
